A new ‘Touch’ performance system places deep control of the synth right at your fingertips – so incredible new ways to play, create and perform are just a touch away.

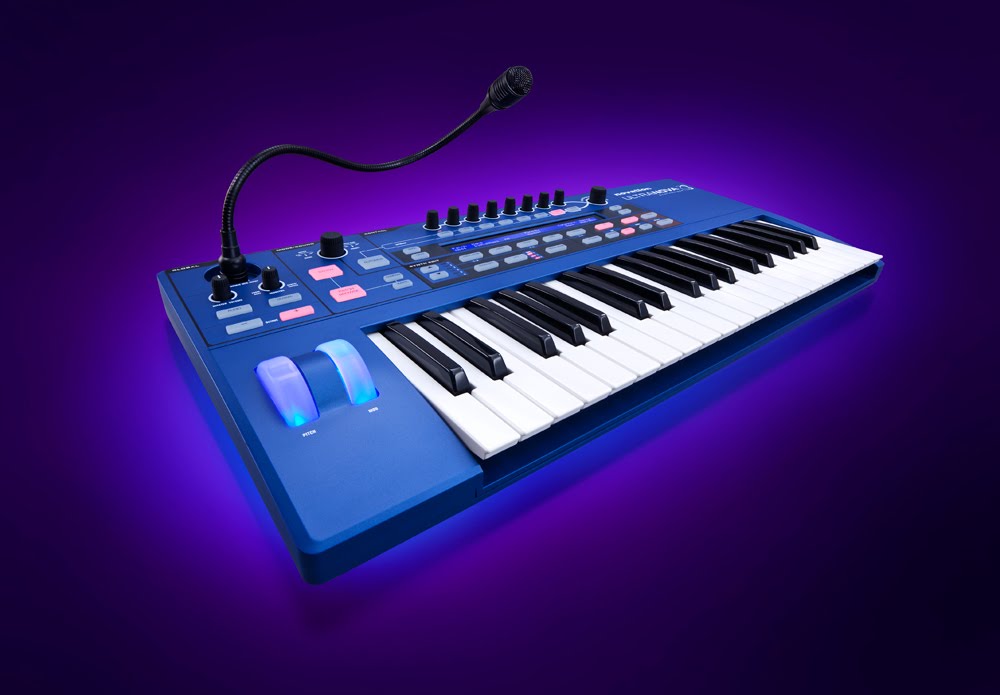

UltraNova is a ‘Nova’ series analogue-modelling synthesizer with a powerful effects processor. It is a single-part synth taking the legendary Supernova II synth engine as a starting point and packing it with the latest technology. It now has brand new features including wavetable synthesis, even more powerful filters, a software editor and a revolutionary new touch-sense performance mode.
The 'Nova' family was born in 1998 with the Supernova, which was the first of a series of powerful synthesisers. These quickly became industry standard 'big-synths' which are still used by countless artists and sound designers.
UltraNova is the latest addition to the family bringing the range right up to date with a host of new features and a more affordable price tag.
Specifications
Synth engine
• Up to 18 note polyphony (dynamic voicing)
• Mono-Timbral
Per patch:
• 3x oscillators
• 1x noise generator
• 2x ring modulators
Waveforms include:
• Square, sine, tri, sawtooth, pulse, 9x saw:pulse combinations.
• 20x digital waveforms
• 36x wavetables
Filtertypes:
2x filters per patch
• low pass no resonance 6dB per octave
• low pass 12dB
• low pass 18dB
• low pass 24dB
• band pass 6:6
• band pass 6:12
• band pass 12:6
• band pass 6:18
• band pass 18:6
• band pass 12:12
• high pass no resonance 6dB per octave
• high pass 12dB
• high pass 18dB
• high pass 24dB
Sources:
20 modulation slots per patch
• 6x envelope generators
• 3x LFOs.
• Aftertouch
• Velocity
• Key scaling/track
• Mod wheel
• Expression pedal
Total of 66 Destinations including:
• Oscillator pitch, pulse width, wavetable index, level and sync
• Filter cutoff, resonance, envelope settings
• Effects parameters and send levels
• Recursive modulation (modulating modulation sources themselves)
5 Effects slots per patch
• Distortion – up to 2 instances
• Compressor – up to 2 instances
• Chorus/Phase – up to 4 instances
• Delay – up to 2 instances
• Reverb – up to 2 instances
• Gator
• EQ
•12 band vocoder
• Arpeggiator – 33 patterns
• Chord function – lock up to 10 notes
• Patch storage up to 512 on hardware (ships with 300 factory patches)
Hardware
• 144 character LCD
• 8x detented touch sensitive encoders
• 1x large smooth encoder (with back-lit filter lock buttons)
• 1x large patch select/speed dial encoder
• 2x volume & monitor mix dials
• 39 LED lit/indicated buttons
• Pitch wheel (LED lit)
• Modulation wheel (LED lit)
• 37 note keyboard with velocity and aftertouch
• XLR dynamic mic input
• 2x ¼” jack inputs
• 2x ¼” jack outputs
• 2x ¼” jack aux outputs
• 1x ¼” jack headphone output
• SPDIF digital output on RCA connector
• Expression pedal on ¼” jack input
• Sustain pedal on ¼” jack input
• MIDI in/out/thru
• 12 volt power input
• USB port (UltraNova can be powered via USB)
• Kensington Lock port
Check Novation's website.
